Sitrex has been supporting New Zealand farmers since the 1980s with reliable, high-quality haymaking equipment.
Following the acquisition of Abbriata and AGM, the range now includes balers and feed mixers — delivering a complete lineup of practical, hardworking solutions.
Built to handle New Zealand’s tough conditions, Sitrex machinery combines innovation, durability, and efficiency. Designed for performance and longevity, Sitrex helps farmers work smarter, reduce downtime, and get the job done season after season.
.png)
.png)
.png)
.png)
STRAW BLOWERS
.jpg)
Total length
Mixing tank volume
Empty weight
Net capacity
Number of throwing blades
Number of knives
Minimum power required
Controls
Attachments to the tractor
Turbine diameter
Two-speed gearbox
Throw distance
Cutting rotor
Rotor rpm
Number of hydraulic counter-knives
Rotor drive
4130 mm
3.5 m
2200 kg
1300 kg
8
72
66 Hp (PTO)
Electric with joystick
2 QRC
Ø 1500 mm
min. 280 max 540
20 m +
L=1400 diam. 530 mm
450
13
Chain with oiler

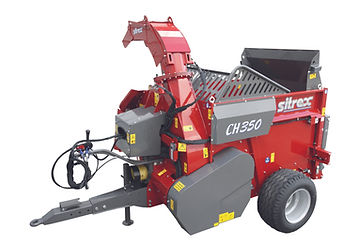

SITREX CH350
TRAILED STRAW BLOWER & FEEDER
The Sitrex CH-350 is a multipurpose machine, capable of feeding out rounds, squares and pit silage, or cutting and blowing straw bales for evenly and quickly distributing bedding for livestock. Quality heavy duty construction built to EU
standards in Italy, this machine is simple and intuitive to operate.
Extremely versatile, as the CH350 can be used as a feed out wagon, a livestock bedder or even to stop erosion on banks. This is the best value machine of its type on the market. As standard for New Zealand these are equipped with the electronic controller, heavy duty chain drive with oiler and auto tensioner (Instead of belts), Liquid injection tank with 4 injectors, adjustable feed out chute, 300-degree rotation of spout, hydraulic counter knives to control how fine the material is chopped and a hydraulic jack stand. Comprehensive spare parts supply stocked in New Zealand.
RAKES & TEDDERS
SR 420-11
WINDROWER
Number of arms
Double tines per arm
Working width
Rotor diameter
Transport width
Power required
RPM
Rotor RPM
Weight
11
4
4.2 m
3.4 m
2 m
37 kW
Max. 540
350 - 450
620 kg
SR 500-13
WINDROWER
Number of arms
Double tines per arm
Working width
Rotor diameter
Transport width
Power required
RPM
Rotor RPM
Weight
13
4
5 m
4 m
2.6 m
52 kW
Max. 540
350 - 450
865 kg
TW 7800
TWIN ROTARY RAKE
Number of arms
Tines per arm
Working width
Rotors
Transport width
Transport height
Power required
RPM during working
Weight
11 x 2
4
6.80 - 7.60 m
2
2.85 m
3.35 - 3.94 m
40 kW
350 - 450 rpm
1880 kg
RT 5800H
ROTARY TEDDER
Working width
Weight
Transport width
Power required
Number of impellers
5.8 m
495 kg
3.35 m
18 kW
4
U400
UNIVERSAL RAKE
Width
Transport width
Power required
PTO
Working width when raking
Working width when windrowing
Highest working speed
Tine arms per rotor
420 kg
2.25 m
19 Kw
540 rpm
3.2 - 3.5 m
3.1 - 4.0 m
14 Km/h
6
HM 300
HAYMAKER
Working width
Weight
Transport width
Power required
Rotors
Height
PTO
Hitch type
3.02 m
330 kg
2.31 m
15 kW
180 rpm
0.79 m
540 rpm
Three point
DISC MOWERS
The SITREX disc mower range, available in 4, 5, 6, 7, and 8-disc models, is designed to suit farms of all sizes.
The DM4 (1.67 m working width) is ideal for small farms, while the DM5 (2.05 m) features two inner discs rotating in the same direction to create a narrower windrow and prevent the tractor from running over cut forage.
The DM6S suits medium to large farms, while the DM7S and DM8S are designed for larger operations.
Built with high-quality gears, bearings, discs, and blades, SITREX mowers deliver reliable performance in demanding conditions. Their unique oval disc design improves forage flow, provides a cleaner cut, reduces the risk of blockages, and prevents damaged blades from contacting adjacent discs. Made from high-grade steel and rigorously tested, the blades feature a helical profile for a precise, clean cut and excellent mowing performance.
SITREX DM4
DISC MOWER
Weight
Power requirements
PTO
Cutting width
Rotating discs
Cutting blades
Knives per disc
372 kg
26 kW
540 rpm
1.67 m
4
8
2
SITREX DM5
DISC MOWER
Weight
Power requirements
PTO
Cutting width
Rotating discs
Cutting blades
Knives per disc
411 kg
30 kW
540 rpm
2.05m
5
10
2
SITREX DM6-S
DISC MOWER
Weight
Power requirements
PTO
Cutting width
Rotating discs
Cutting blades
Knives per disc
560 kg
34 kW
540 rpm
2.73 m
6
12
2
SITREX DM7-S
DISC MOWER
Weight
Power requirements
PTO
Cutting width
Rotating discs
Cutting blades
Knives per disc
590 kg
39 kW
540 rpm
2.85 m
7
14
2
SITREX DM8-S
DISC MOWER
Weight
Power requirements
PTO
Cutting width
Rotating discs
Cutting blades
Knives per disc
635 kg
41 kW
540 rpm
3.23 m
8
16
2
BALERS
MINI ROUND BALER
Bale tie
Bale size
Hay bale weight
Pick-up width
Width
Length
Height
Weight
Twine/net
50 x 70 cm
18 ÷ 25 kg
85 cm
130 cm
150 cm
130 cm
380 kg
SITREX M50 MINIROTO
M50 is a machine that can be used with small, low-power tractors thanks to its light weight. It is suitable for mountainous areas and steep slopes and can access narrow passageways. It allows for tight manoeuvring during use. It has an excellent harvesting capacity. The bales can be easily adjusted in terms of density, thus allowing for easy manual handling. It can bale hay, straw and green produce effortlessly.
Its compact size make this machine suitable for any type of use and any terrain. The machine can be supplied with a three-point hitch or with a drawbar adjustable in length and height.
With the drawbar, the machine can be fitted with raking finger wheels that facilitate harvesting over wider swaths. The machine’s track width can be adjusted according to the available passage where it is used.
The machine is equipped with a double harvester balancing system and an adjustable harvester wheel that allows the user to keep it at the desired distance from the ground.
The machine is equipped with many safety bolts to preserve each functional part. It can be supplied with a net knotter or a twine knotter depending on the material to be baled.
SITREX M60 SUPER & SITREX M61 SUPER
M60 and M61 are machines that can be used with low-power tractors thanks to their light weight and manoeuvrability. They are suitable for mountainous areas and steep slopes. They allow for tight manoeuvring, especially the smaller models. They have an excellent harvesting capacity and a good bale production capacity. The bales can be easily adjusted in terms of length and density, thus allowing for easy manual handling and harvesting. Both hay and straw can be baled effortlessly.
Their compact size and ease of use make these machines suitable for any type of use and any terrain. The adjustment elements are simple and intuitive. The machines are equipped with a knotter of German technology. The gearbox is made of high-performance and durable materials.
The machines feature many safety bolts to preserve each functional part. The machines are very durable over the years, also thanks to the use of treatments and workmanship that guarantee durability.
SITREX M60 SUPER
SQUARE BALER
Bale tie
Bale chamber
Straw bale weight
Hay bale weight
Bale length
Bales / minute
Pick-up width
Weight
Twine
34 x 44 cm
13 - 20 kg
18 - 28 kg
40 - 130 cm
6 - 10
1.4 m
1000 kg
SITREX M61 EXPORT/170
SQUARE BALER
Bale tie
Bale chamber
Straw bale weight
Hay bale weight
Bale length
Bales / minute
Pick-up width
Weight
Twine
36 x 46 cm
16 - 18 kg
20 - 35 kg
40 - 130 cm
6 - 10
1.7 m
1250 kg
FINISHING MOWERS
Sitrex mower with five blades for a smooth cut and low horsepower requirement.
Suitable for parks, golf courses, athletic fields, highway maintenance and farming.
Solid rubber wheel (pneumatic wheel available on request).
OPTIONAL ACCESSORY KITS
-
1-1/4” diameter wheel post on pneumatic wheel
-
Fully floating hitch to obtain better cutting finish even on undulating ground
-
Safety chain
-
Designed according to the most advanced technics, heavy duty gearbox and thick gauge deck.
-
Efficient Sitrex gearbox.
-
Precision ball bearings.
-
Nylon idler pulleys with ball bearings.
-
Easy access grease points
-
Easy to adjust belts
-
Excellent cutter heads overlap for 100% cutting.
-
Cutter blades of special steel, high suction for grass lifting and clean finish.
-
Cutting height adjusted by spacer bushings placed on wheel’s post.
-
Optional front roller
SITREX SM120
Weight
PTO
Cutting width
Cutting height
No of blades
Power requirements
Blade rpm
3 point hitch
Standard wheels
68 kg
540 rpm
1.22 m
25 - 100 mm
3
9 - 15 kW
3250 rpm
CAT. 1
210 x 80
SITREX SM150
Weight
PTO
Cutting width
Cutting height
No of blades
Power requirements
Blade rpm
3 point hitch
Standard wheels
198 kg
540 rpm
1.52 m
25 - 100 mm
3
11 - 22 kW
2632 rpm
CAT. 1
210 x 80
SITREX SM180
Weight
PTO
Cutting width
Cutting height
No of blades
Power requirements
Blade rpm
3 point hitch
Standard wheels
277 kg
540 rpm
1.83 m
25 - 100 mm
3
15 - 30 kW
2230 rpm
CAT. 1
210 x 80
SITREX SM210
Weight
PTO
Cutting width
Cutting height
No of blades
Power requirements
Blade rpm
3 point hitch
Standard wheels
290 kg
540 rpm
2.11 m
25 - 100 mm
3
22 - 34 kW
2000 rpm
CAT.1
210 x 80
SITREX SM230
Weight
PTO
Cutting width
Cutting height
No of blades
Power requirements
Blade rpm
3 point hitch
Standard wheels
310 kg
540
2.29 m
25 - 100 mm
3
22 - 44 kW
2630 rpm
CAT. 1
210 x 80
WHY SITREX?
For more than 50 years, Sitrex has been designing and manufacturing innovative agricultural machinery trusted by farmers around the world. Since its founding in 1970, the company has built a reputation for delivering high-quality, reliable equipment that improves productivity across haymaking, feeding, and general farming operations.
Sitrex combines Italian engineering excellence with a commitment to innovation, functionality, and durability. From rakes, mowers, tedders, and balers to mixer feeders and specialised farm equipment, every machine is designed to meet the real-world needs of farmers and maximise efficiency in the field.
When you choose Sitrex through CTM Imports, you're investing in proven performance, industry-leading expertise, and equipment backed by a global brand that has been supporting farming success for generations.
