Mascar balers are built for farmers and contractors who demand reliability, performance, and perfectly formed bales every time. Designed and manufactured in Italy, Mascar combines robust engineering with smart technology to deliver consistent bale density, efficient crop flow, and minimal downtime. From fixed and variable chamber round balers to high-capacity models, Mascar balers are made to handle New Zealand conditions with ease — season after season.

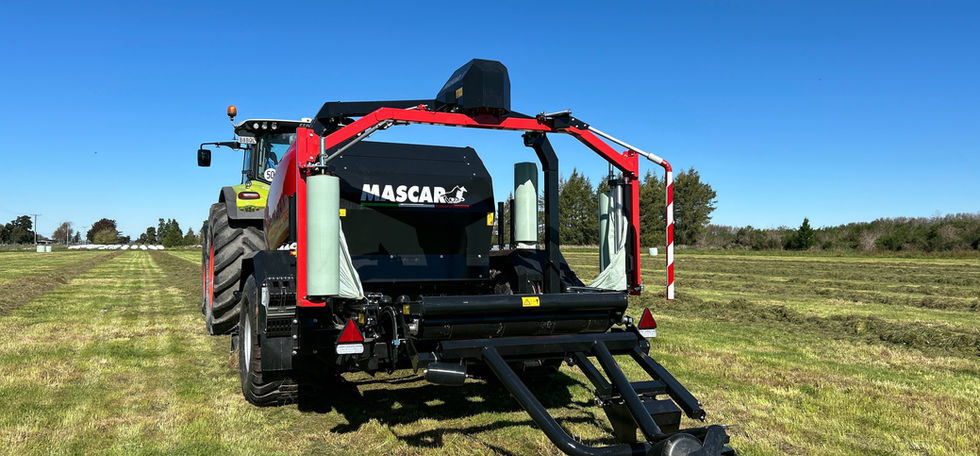

MASCAR MULTIWRAP 130

FIXED CHAMBER ROUND BALER AND WRAPPER COMBINATION

MASCAR’s decades of experience in combined machines has led to MULTIWRAP: a baler-wrapper combination developed to better satisfy the most demanding professionals and contractors.

Thanks to MULTIWRAP it is possible to increase both the productivity and the quality of the final product, while reducing the processing time and saving costs.

Total control of the collection and wrapping operations

Multiwrap 130 is the result of a perfect integration between baler and wrapper.

With the new graphic terminal you can quickly manage all the machine working parameters.

The new wrapper is the result of careful studies to improve the film overlap and the working times.

We have also reduced its dimensions and placed scrupulous attention to user safety.

Bale diameter
Bale width
Rollers
P.T.O.
Power requirements
Total pickup width
Pickup width (DIN 11220)
Teeth-holder bars / teeth per each bar
Tine pitch
Cutting system
Cut length
Automatic knives cleaning
Drop floor
Net binding
Automatic chains lubrication
Standard tyres
Feeder
Hydraulic requirements

Bale wrapper
Automatic work cycle
Film reel height
Film break detection
Single film wrapping mode
Vertical bale overturning kit

130

120

540

88 kW (120Hp)

225

200

4 / 28

25 knives

Standard

600/55-22.5

Rotary cutting system

1 x SE + free return

Standard

750

Standard

Optional

Baler features

Fixed chamber round baler with rollers system

Large pickup and rotor allow a high collection speed

Available with 15 or 25 knives cutting system

Oversized components to withstand harsh working conditions

Net binder: easy reel loading and simplified net passage

Anti-flooding drawer with automatic return

Pneumatic brakes optional

EU approval optional

Electronic management system features

Extremely intuitive 7” colour graphic monitor

Possibility of working in manual or in a fully automatic mode

Intelligent identification system of all work steps

Detailed statistical archive

Advanced diagnostic system with graphic and detailed error archive

Bale wrapper features

Geometries and position of the double film stretcher designed to reduce the overall dimensions to a minimum

Improved film stretch for exceptional coverage and therefore to reduce waste

Optimization of the bale loading phase to minimize downtime

Possibility to work with only one film reel

New bale overturning system that can be folded for transport

MASCAR MONSTER 870

VARIABLE CHAMBER ROUND BALER WITH BELTS

Monster 870 round baler with variable chamber for the harvesting professionals

Its technical characteristics have been studied in order to fulfill every need granting at the same time top performance joint with a “New generation” design.
These features make of MONSTER a machine able to face any productivity challenge.

Professionalism, speed and performance

The Mascar Monster series comes up from the experience of who builds round balers since many years, designed for the most demanding clients. Quality, high productivity and reliability are the main characteristics of Monster. The variable chamber allows to satisfy any requirement, from a farm to contractor.

Monster 870 round baler with variable chamber for the harvesting professionals

Its technical characteristics have been studied in order to fulfill every need granting at the same time top performance joint with a “New generation” design. These features make of MONSTER a machine able to face any productivity challenge.

Highest levels performance

Pick-up with galvanized bends available in sizes 210 cm and 225 cm for version XL, allows excellent velocity process. It is suitable for harvesting of different cultures with voluminous and discontinous gathering line, the leakage of the product is minimal.

Bale dimensions

Belts

P.T.O

Power requirements

Total width pick-up

Bars teeth-holder / each bar

Unblocking system

Electronic net binding

Wheels 19.0/45-17

Comb-feeder

Bales counter

Electric supply

Hydraulic requirements

Draw-bar

Lights installation

Electronic system

Control monitor M700

Hydraulic brakes*

Pneumatic brakes

Telescopic ejector

80 - 170 x 120

3 MRT belts

540

59kW (80HP)

225

4/30

Standard

Rotary

10 customisable counters

12V - 30A

2 x DE

Adjustable

Standard

Optional

Precise and costant feeding

Large augers convey perfectly the forage to the rotor, which with only 2 rows of teeth delicately treats leaf products. The CUT rotor, equipped with 3 rows in high resistance HARDOX teeth, performs a 70 mm сut with 15 knives which can be exluded hydraulically directly from the tractor cab. When it is necessary the cutting can be performed with only 7 knives.

Perfect bales, high quality forage

The press chamber consists of 3 robust endless belts or 5 belts with clips for the SMART version, which ensure perfect feed grip and reduce leakage of the product.

Using terminal located in the tractor cab you can set the diameter of the bale from 80 cm to 170 cm and its density. When you need is possible to obtain the soft core up to a diameter of 150 cm, thanks to the combined action of the two folding arms.

Fast and efficient binding

The binding system works excellent with speed and precision, performs a perfect bale winding and maintains the optimum tension of the net thanks to direct braking of the rubber roller. Also the frontal space for net make easier loading and unloading of the net roll

High comfort, everything is under control

There are many possibilities to customize the pressing and binding parameters with the advanced M700 control system. The use of the terminal is simple and intuitive: everything is under control with the color graphics interface, information is displayed in a single screen. The ECU control unit is robust, has an advanced diagnostic system and an emergency mode that allows you to continue working without the terminal via preset programs (not available for SMART). The power absorption by the system is minimal and the software can be updated via USB.

All Mascar round balers are protected by a high quality painting that awards resistance and exceptional aesthetic finishing.

WHY MASCAR?

Proven European Engineering

Designed and manufactured in Italy, Mascar balers are built with high-quality components for durability and long service life.

Consistent, High-Density Bales

Advanced chamber design and reliable crop flow systems ensure tight, uniform bales that stack, store and transport efficiently.

Simple, Operator-Friendly Controls

Straightforward setup, intuitive monitors and easy maintenance reduce downtime and keep you baling when the weather’s right.

Built for Tough Conditions

Strong frames, heavy-duty rollers and robust driveline systems make Mascar balers well suited to demanding New Zealand hay and silage conditions.
