FARESIN
Mixer wagons and telehandlers
The Faresin range is designed for real-world application, offering exceptional control, precision and manoeuvrability across feeding, stacking and general handling tasks.
With flexible configurations and a focus on operator comfort and efficiency, each machine can be tailored to suit your operation.
Backed by over 50 years of engineering expertise, the FS Series represents the future of telehandlers — combining proven durability with modern technology for New Zealand agriculture.

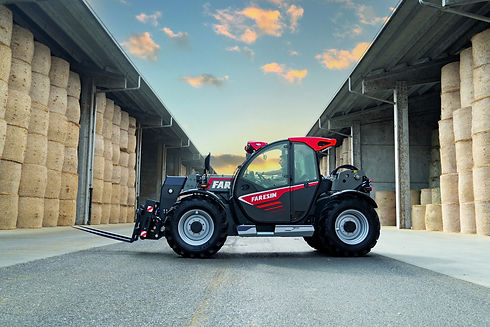

TELEHANDLERS
The Faresin Telehandlers range offers models able to offer the right solution for any type of work. The boom lengths vary from 6 to 17 meters and the lifting capacity from 2,6 to 7 tons. Control, precision and maneuverability-the top to make it easier to lift and move all kinds of materials in all conditions. An innovative industrial approach, thanks to which Faresin able to set up each model in a variety of configurations, which differ in performance and options but ensure maximum comfort and efficiency.
COMPACT
FS 7.32C
Lifting capacity: 3,200kg
Lifting height: 7.1m
FS 9.32C
Lifting capacity: 3,200kg
Lifting height: 9m
The new FS Compact series features telehandlers with a maximum lifting capacity of 3,200 kg and a reach height of 9 metres. Their compact dimensions deliver outstanding performance, combining unique agility, impressive stability, and exceptional versatility.
Agile in tight spaces, a roof height of just 2.06 m for the Compact version and a steering angle of 37° are the calling card of the new FS Series. A new generation of telehandlers designed for tomorrow’s agriculture and already available today.
Pushing power is as important as the stability of the machine when lifting the boom. All of these are features that the FS series has in abundance thanks to the long pitch and optimal weight distribution on the frame.
The Compact series provides high‑level performance in tight spaces, offering excellent visibility and a spacious, ergonomic cabin — including the lowered version.
MIDDLE
FS 7.40
Lifting capacity: 4,000kg
Lifting height: 7.1m

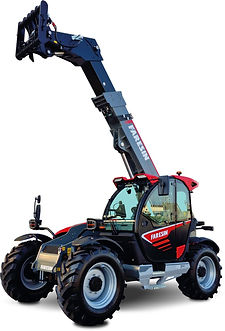

FS 7.45
Lifting capacity: 4,500kg
Lifting height: 7.1m
FS 8.40
Lifting capacity: 4,000kg
Lifting height: 8m
FS 10.40
Lifting capacity: 4,000kg
Lifting height: 9.8m
The FS Middle series delivers strong performance with modern design, excellent visibility, and an ergonomic, safety‑certified cabin.
Its oversized hydraulic system ensures fast, smooth boom movements with precise control, supported by flow‑sharing and electro‑proportional functions.
All models feature the Ecodrive hydrostatic transmission for efficient power use and reduced fuel consumption, with cooling systems designed for dusty environments and automatic stop/start for added savings.
With lift capacities up to 4.5 tonnes, heights from 7.1 to 9.9 metres, and outreach up to 6.5 metres, the FS Middle range offers versatile, reliable telehandlers suited to both agriculture and construction.

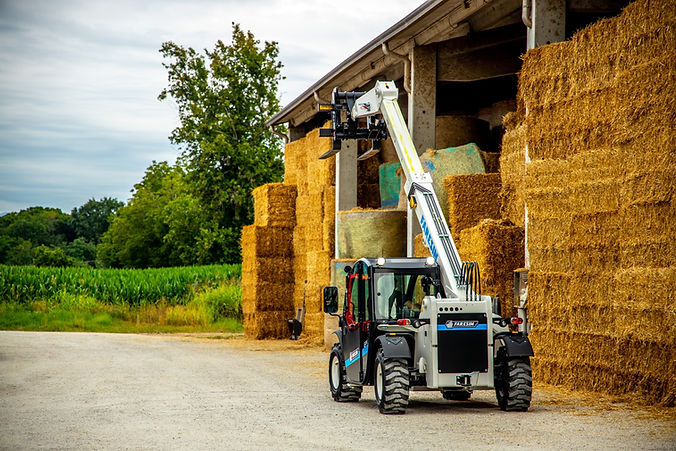

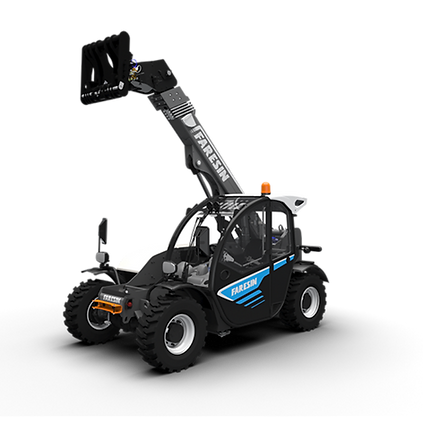

FULL ELECTRIC
FR 6.26
Lifting capacity: 2,600kg
Lifting height: 5.9m
The Faresin Full Electric 6.26 is the first mass‑produced fully electric telehandler, delivering quiet, zero‑emission performance with a 2.6‑ton lift capacity and 6‑metre reach. It matches the capability of the diesel 6.26 while offering a cleaner solution for urban sites, indoor work, airports, rail hubs, greenhouses, and other sensitive environments.
Its ergonomic cab, clear LED display, and 80V battery system (with 32 or 43 kWh options) provide up to 10 hours of autonomy.
Fast charging options allow a full recharge in as little as 3 hours.
A compact, robust chassis, regenerative braking, and compatibility with Euro and Faresin attachments ensure strong versatility across construction, industrial, and agricultural tasks. FARMATICS telemetry supports remote monitoring and efficient fleet management.
MIXER WAGONS
Faresin’s self-propelled and trailed mixer wagons can best satisfy all the needs of livestock farms, both in terms of quality and size. The large loading capacity can meet the needs of any livestock farmer with the advantage that, in addition to saving time for feed set-up and distribution, the goal of improving animal welfare is also achieved by feeding feed that stimulates proper rumination.
SELF-PROPELLED
Faresin’s self‑propelled mixer wagons are designed to deliver high‑precision feeding, efficient loading, and consistently homogeneous unifeed across farms of all sizes. The range includes the Leader PF3 Plus Ecotronic, Leader PF, and Leader PF Classic, each tailored to different operational needs while sharing the same focus on performance, reliability, and operator comfort.
The Leader PF3 Plus Ecotronic is built for large livestock operations, offering high‑capacity three‑auger tubs up to 40 m³ and advanced digital management through the ECOTRONIC system. This integrated technology automates loading, cutting, mixing, and unloading processes, ensuring optimal feed quality and reduced operating costs. Its powerful milling cutter, three steerable axles, and Stage V FPT engine deliver strong maneuverability, fast work cycles, and efficient fuel use.
The Leader PF series provides a wide range of single‑ and twin‑auger models from 11 to 33 m³, combining robust construction with refined mixing geometry for consistently soft, uniform feed. Operators benefit from a comfortable, well‑equipped cab, efficient milling options, and reliable FPT engines with long service intervals. Versions include Compact models for low buildings and narrow passages, plus Ecomix and Ecomode configurations offering different performance and transfer‑speed capabilities.
The Leader PF Classic offers a simplified, easy‑to‑use solution ideal for smaller barns or farms beginning with precision feeding. With capacities from 12 to 16 m³, a strong milling system, efficient Deutz engine, and agile four‑wheel steering, it delivers reliable mixing performance in tight spaces. Its ergonomic controls and clear touchscreen display make daily operation straightforward and intuitive.
Together, the Faresin self‑propelled mixer wagon range provides advanced technology, strong build quality, and versatile configurations to suit everything from compact farm layouts to high‑volume feeding operations.
LEADER PF CLASSIC
Augers: 1
Mixing: Vertical
Configurations: Classic
Load capacity: from 12 to 16m3
Models:
1.12CL - 1.14CL - 1.16CL
LEADER PF
Augers: 1-2
Mixing: Vertical
Configurations: Ecomix-Ecomode
Load capacity: from 11 to 33m3
Models:
1.11 - 1.14 - 1.14B -
1.17 - 1.17B - 1.20
2.18 - 2.20 - 2.22 - 2.22B - 2.24 -
2.26 - 2.26B - 2.28 - 2.30 - 2.33
LEADER PF COMPACT
Augers: 1-2
Mixing: Vertical
Configurations: Ecomix-Ecomode
Load capacity: from 12 to 16m3
Models:
1.12C - 1.14C - 1.16C
2.12C - 2.14C - 2.16C
LEADER PF ECOTRONIC
Augers: 3
Mixing: Vertical
Configurations: Ecomix-Ecomode
Load capacity: from 30 to 40m3
Models:
3.30 - 3.36 - 3.40

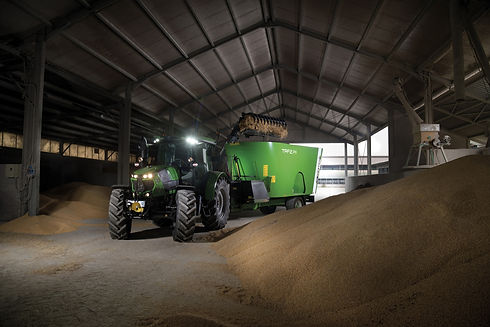

TRAILED
.png)

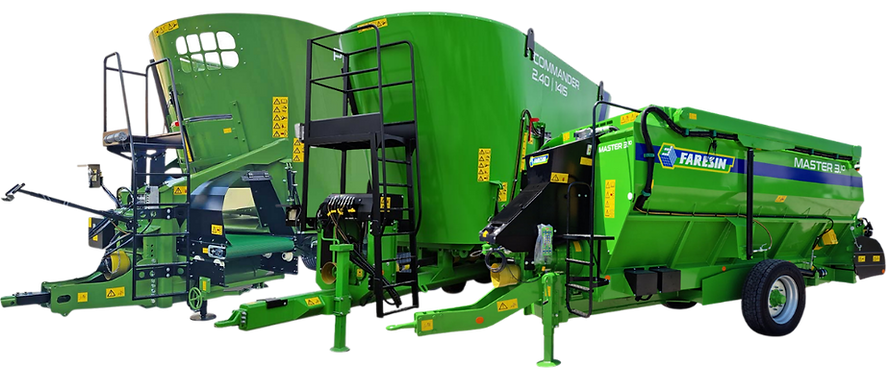

Faresin’s trailed mixer wagon range is designed to deliver consistent, high‑quality unifeed with efficient cutting, mixing, and distribution across a wide variety of farm sizes and layouts. The lineup includes Vertical TPF, Vertical Commander, and Horizontal Master models, each offering different mixing technologies to suit specific feeding needs.
The Vertical TPF series uses a single or twin vertical auger system engineered for fast, uniform mixing of all feed components, including long fibres. Its robust frame, efficient loading options, and precise discharge systems make it suitable for medium to large farms seeking reliability and simplicity. Multiple capacities and configurations allow operators to match the machine to their herd size and barn layout.
The Vertical Commander range builds on vertical‑auger performance with enhanced mixing geometry and higher‑capacity tubs. These wagons are designed for farms requiring strong fibre processing and consistently homogeneous rations. Commander models offer advanced weighing systems, durable construction, and flexible discharge options, making them ideal for intensive daily feeding cycles.
The Horizontal Master series features a horizontal mixing system with counter‑rotating augers, delivering exceptionally gentle and uniform blending. This design is particularly effective for delicate rations, high‑moisture mixes, and operations where feed structure must be preserved. The Master range provides accurate weighing, smooth distribution, and reliable performance in compact or complex barn environments.
Together, Faresin’s trailed mixer wagons offer a complete solution for precise, efficient feeding — whether a farm needs strong fibre processing, high‑volume vertical mixing, or gentle horizontal blending.

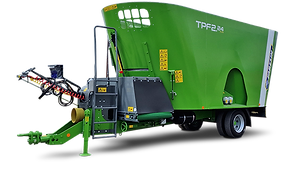

TRAILED TPF
Augers: 1-2-3
Mixing: Vertical
Configurations: Classic - Plus - Profi
Load capacity: from 5 to 46m3
Models:
1.5 - 1.7 - 1.9 - 1.11 - 1.13 - 1.15
2.12 - 2.14 - 2.16 - 2.18 -
2.20 - 2.22 - 2.24 - 2.26 - 2.30
3.36 - 3.40 - 3.46
COMMANDER
Augers: 2
Mixing: Vertical
Configurations: -
Load capacity: from 30 to 40m3
Models:
2.30 - 2.40
MASTER
Augers: 3
Mixing: Horizontal
Configurations: -
Load capacity: from 10.5 to 14m3
Models:
3.10 - 3.12 - 3.14
FULL ELECTRIC MIXER WAGON
The Faresin Full Electric self‑propelled feeder wagons bring zero‑emission technology to high‑performance feeding operations, offering a sustainable alternative without sacrificing power or precision. Designed for farms wanting quieter operation, reduced environmental impact, and lower running costs, these machines deliver fully electric loading, mixing, and distribution with no exhaust emissions.
Their advanced electric drive system provides smooth, responsive handling and efficient energy use, supported by high‑capacity batteries that ensure strong autonomy throughout daily feeding cycles. The milling cutter and mixing system maintain the same performance levels as traditional diesel models, producing consistently homogeneous unifeed while keeping operating noise to a minimum — ideal for enclosed barns, sensitive environments, and early‑morning or late‑evening work.
Operators benefit from a modern, ergonomic cab with intuitive controls, clear digital displays, and integrated management systems that monitor machine performance and energy consumption. The compact, manoeuvrable chassis allows easy navigation in tight farm layouts, while robust construction ensures long‑term reliability.
The Full Electric series combines Faresin’s proven feeding technology with clean, efficient electric power, offering a forward‑thinking solution for farms aiming to reduce emissions, improve working comfort, and lower overall operating costs.

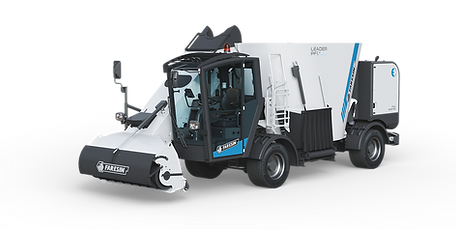

LEADER PF1
Augers: 1
Mixing: Vertical
Load capacity: 11m3 - 17m3
Models:
1.11 - 1.17 - 1.14B

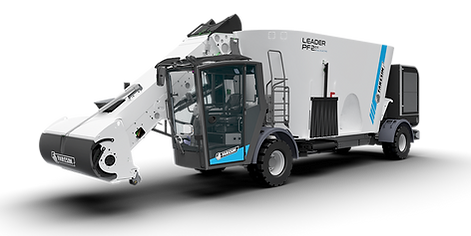

LEADER PF2 Plus
Augers: 2
Mixing: Vertical
Load capacity: 18m3 - 24m3
Models:
2.18 - 2.20 - 2.22 - 2.24
